Additional information
| Manufacturer | Heat & Glo |
|---|---|
| Location |

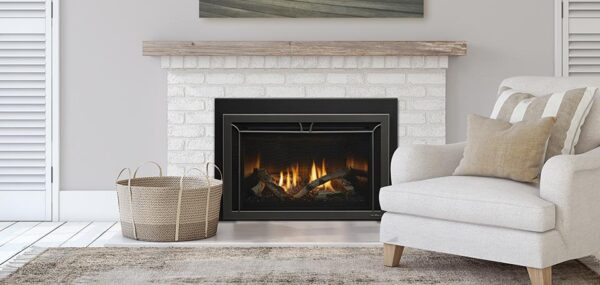

Heat & Glo COSMO Gas Fireplace Insert
No more drafty, dated fireplaces. No more messy maintenance. No more soot and smoke. It’s time for an immediate upgrade, with interest.
Go modern. A ribbon of flame and glistening glass interior take your fireplace transformation to the next level.
- 13,500 – 28,000 BTUs
- 30 or 35-inch viewing areas
- Customize your look with distinctive interior options
Product Brochures
Installation Manuals
Cosmo Install Manual
Cosmo Install Manual (French)
IFT-RC150 Install Manual
IFT-RC400IFT-ACM Install Manual
IFT-ACM Install Manual
Owner’s Manuals
Cosmo Owner Manual
Cosmo Owner Manual (French)
IFT-RC150 User Guide
IFT-RC400 User Guide
Service Parts
Service Parts: Cosmo-I30
Service Parts: Cosmo-I35
Architect Guides
Cad Drawings
Specification Guide
Cosmo Insert 30
| Size: | 30″ |
| Width: | 31-/18″ |
| Height: | 20-3/4″ |
| Depth: | 14-1/2″ |
| Rear Width: | 19-5/8″ |
| Front Width Minimum Firebox Opening: | 31-5/8″ |
| Height Minimum Firebox Opening: | 21″ |
| Depth Minimum Firebox Opening: | 15″ |
| Back Width Minimum Firebox Opening: | 20-1/8″ |
| BTU/hr Input: | 28,000 |
| Viewing Area: | 27-1/2″ x 15-15/16″ |
| Ignition System: | IFT |
Cosmo Insert 35
| Size: | 35″ |
| Width: | 36-1/8″ |
| Height: | 24″ |
| Depth: | 14-1/2″ |
| Rear Width: | 24-5/8″ |
| Front Width Minimum Firebox Opening: | 36-5/8″ |
| Height Minimum Firebox Opening: | 24-1/4″ |
| Depth Minimum Firebox Opening: | 15″ |
| Back Width Minimum Firebox Opening: | 25-1/8″ |
| BTU/hr Input: | 30,000 |
| Viewing Area: | 32-1/2″ x 19-3/8″ |
| Ignition System: | IFT |
Efficiency Chart
Cosmo Insert 30
| Canada EnerGuide: | 69.8% |
Cosmo Insert 35
| Canada EnerGuide: | 72.0% |
