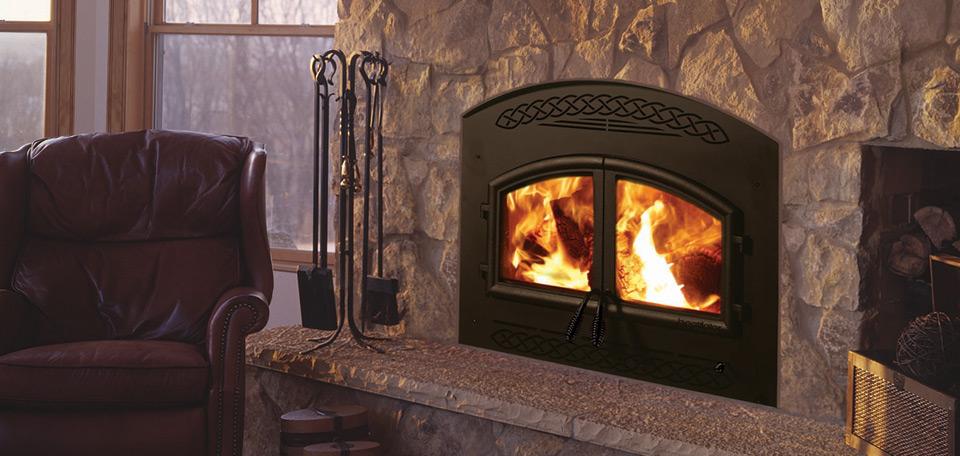

Heatilator Constitution Wood Fireplace

The Constitution is a beautiful and efficient wood-burning fireplace. Strict air quality regulations or “burn bans” are no match for these clean-burning, eco-friendly wood fireplaces! Savor exceptional heating power with extremely easy operation.

  • 68,200 BTUs—heats 1,000 to 2,600 sq. ft. based on climate and home efficiency
  • 2.7 cu ft interior capacity / 22″ maximum log length
  • Up to 10 hours of burn time†
  • EPA certified with emission levels of just 1.8 grams per hour

Product Brochures

Brochure
Idea Book

Installation Manuals

Install Manual
HHT-TEMPLATE-C Installation Manual
HEAT-ZONE-WD-C Installation Manual
MESH-HHT-C Installation Manual

Owner’s Manuals

Owner’s Manual

Service Parts

Service Parts

Architect Guides

Architect Guide

Cad Drawings

CAD Drawing

Specification Guide

Constitution

Size: Medium
Width: 40″
Height: 40-1/2″
Depth: 23-1/2″
Rear Width: 40″
Framing Width: 42 1/2″
Framing Height: 56 3/4″
Framing Depth: 24″
Framing Front Width: 42-1/2″
Framing Back Width: 42-1/2″
Fuel Type: Wood
Peak BTU/hr Output: 68,200
Heating Capacity: 1,000 – 2,600 sq ft
Maximum Burn Time: 10 Hours
Firebox Capacity: 2.7 cubic feet
Recommended Log Length: 22″
Viewing Area: 37 x 31-1/8″
Efficiency: 76%
Emissions: 1.8 grams/hour

Efficiency Chart
