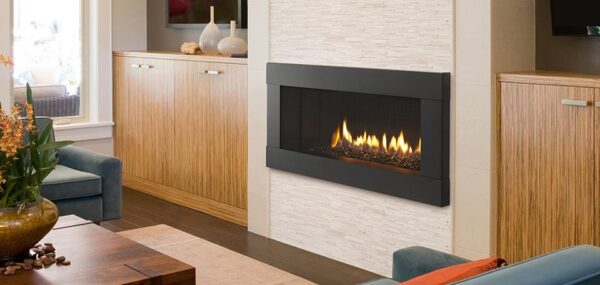

Heatilator Crave Series Gas Fireplace
The Crave provides modern luxury at an affordable price. All of the essentials for a complete modern design are available in both single-sided and see-through models. Multiple upgrade options also let you accent your style and personalize your look. These affordable fireplaces are truly the best option on the market, providing modern luxury, backed by the #1 preferred brand by builders.
- Define your design with 4 sizes (36, 48, 60, 72-inch) and multiple customization options
- Industry leading end-to-end flame technology
- Customize interior with upgraded features including crushed glass, logs and reflective black glass interior lining
- Select from the IntelliFire® app, touchscreen remote or wireless wall switch for the solution that fits your life
- Optional Heat Management Solutions enable you to redistribute heat to other areas of the home or reduce wall temperatures for convenient TV placement
- Choose from singled-sided or see-through models
- Up to 58,000 BTUs
Product Brochures
Crave Series Product Brochure
Idea Book
Installation Manuals
Installation Manual
Installation Manual – French
HEAT-OUT-GAS Installation Instructions
HEAT-ZONE-GAS Installation Instructions
Passive Heat Kit Installation Instructions
Passive Heat Side Discharge Instructions
Passive Heat Trim Installation Instructions
Passive Heat Front Discharge Instructions
Owner’s Manuals
Owner’s Manual
Owner’s Manual – French
Service Parts
Service Parts: Crave4836
Service Parts: Crave6048
Service Parts: Crave7260
Service Parts: Crave8472
Architect Guides
Architect Guide: CRAVE4836
Architect Guide: CRAVE6048
Architect Guide: CRAVE7260
Architect Guide: CRAVE8472
Cad Drawings
CAD Drawing: Crave4836
CAD Drawing: Crave6048
CAD Drawing: Crave7260
CAD Drawing: Crave8472
Specification Guide
Crave 36 Rev C 36″ Gas Fireplace – DV
| Size: |
36″ |
| Width: |
46-3/16″ |
| Height: |
41-3/4″ |
| Depth: |
17-1/8″ |
| Rear Width: |
46-3/16″ |
| Framing Height: |
42″ |
| Framing Depth: |
18-1/4″ |
| Framing Front Width: |
48-1/4″ |
| Framing Back Width: |
48-1/4″ |
| BTU/hr Input: |
30,000 |
| Viewing Area: |
35-1/2 x 12-1/2″ |
Crave Linear 6048 48″ Gas Fireplace – DV
| Size: |
48″ |
| Width: |
58″ |
| Height: |
41-3/4″ |
| Depth: |
17-1/8″ |
| Rear Width: |
58″ |
| Framing Front Width: |
60-1/4″ |
| Framing Back Width: |
60-1/4″ |
| BTU/hr Input: |
40,000 |
| Viewing Area: |
47-1/2 x 12-1/2″ |
Crave60 Rev C 60″ Gas Fireplace – DV
| Size: |
60″ |
| Width: |
70″ |
| Height: |
47-3/4″ |
| Depth: |
17-1/8″ |
| Rear Width: |
70″ |
| Framing Height: |
48″ |
| Framing Depth: |
18-1/4″ |
| Framing Front Width: |
72-1/4″ |
| Framing Back Width: |
72-1/4″ |
| BTU/hr Input: |
50,000 |
| Viewing Area: |
59-1/2 x 12-1/2″ |
Crave72 Rev C 72″ Gas Fireplace – DV
| Size: |
72″ |
| Width: |
82″ |
| Height: |
47-3/4″ |
| Depth: |
17-1/8″ |
| Rear Width: |
82″ |
| Framing Height: |
48″ |
| Framing Depth: |
18-1/4″ |
| Framing Front Width: |
84-1/4″ |
| Framing Back Width: |
84-1/4″ |
| BTU/hr Input: |
58,000 |
| Viewing Area: |
71-1/2 x 12-1/2″ |
Efficiency Chart
Crave 36 Rev C 36″ Gas Fireplace – DV
| Steady State: |
49.2% |
| AFUE: |
44.1% |
| Canada EnerGuide: |
47.8% |
Crave Linear 6048 48″ Gas Fireplace – DV
| Steady State: |
57.2% |
| AFUE: |
46.4% |
| Canada EnerGuide: |
53.2% |
Crave60 Rev C 60″ Gas Fireplace – DV
| Steady State: |
63.0% |
| AFUE: |
58.0% |
| Canada EnerGuide: |
52.6% |
Crave72 Rev C 72″ Gas Fireplace – DV
| Steady State: |
61.3% |
| AFUE: |
56.6% |
| Canada EnerGuide: |
51.3% |
