Heatilator Icon Series Wood Fireplace

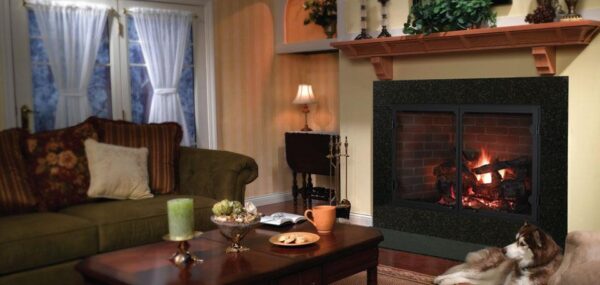

The Icon is the industry’s largest wood-burning fireplace. Its beauty is highlighted by expansive viewing areas and authentic masonry looks. Let the fire roar with the Icon in the room.

  • 36″, 42″ or 50″ viewing area
  • Choose bi-fold or cabinet style door options
  • Clean design allows finishing materials to be applied up to the firebox opening

Product Brochures

Mantels Shelves and Surrounds
Icon Series

Installation Manuals

Grand Oak Log Set GO318
Grand Oak Matchlight
Grand Oak Log Set GO30
Grand Oak Log Set GO324
Icon (I100H &I100CT) 50″
Grand Oak Log Set GO330
Grand Oak Hearth Kit GO24-30-318-324-330-IPI-NG or LP-HK
Grand Oak Hearth Kit GO24-30MTCH-HK
Grand Oak Log Set GO30
Icon (i100CT & i100H) (Pre March 2013)
Icon (I60 & I80) (Pre March 2013)
Icon (I60 & I80)
Icon (I60)
I80 (I80H, I80T, ICON 80)

Owner’s Manuals

Icon 50″ (I100CT & I100H)
Icon 60 & 80 (I60/I80)

Service Parts

Icon (I100CT/I100H)
GO24
Icon (I60H & I60CT)
Icon (I80H & I80CT)
GO24-IPI

Architect Guides

Icon I100
Icon I60
Icon I80

Cad Drawings

I100
I60WOOD
I60
I80WOOD

Specification Guide

ICON 100 50″ Woodburning Fireplace

Unit Width: 60-5/8″
Unit Height: 70-1/2″
Unit Depth: 29-1/2″
Unit Rear Width: 41-5/8″
Framing Height: 71″
Framing Depth: 30-1/2″
Framing Front Width: 61.625
Framing Back Width: 61.625
Viewing Area: 50 x 33″

ICON 60 36″ Woodburning Fireplace

Unit Width: 44-1/2″
Unit Height: 59-1/4″
Unit Depth: 27-1/2″
Unit Rear Width: 28-5/8″
Framing Height: 59-3/4″
Framing Depth: 28″
Framing Front Width: 45.5
Framing Back Width: 45.5
Viewing Area: 36 x 28-1/2″

ICON 80 42″ Woodburning Fireplace

Unit Width: 50-1/2″
Unit Height: 59-1/4″
Unit Depth: 27-1/2″
Unit Rear Width: 34-1/2″
Framing Height: 59-3/4″
Framing Depth: 28-1/2″
Framing Front Width: 51.5
Framing Back Width: 51.5
Viewing Area: 42 x 28-1/2″

Efficiency Chart
