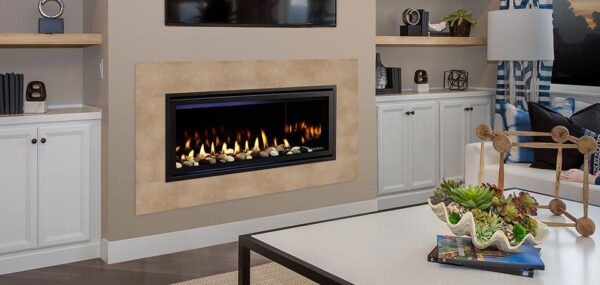

Heatilator Rave Series Gas Fireplace

The Rave adds a modern, linear style and proven value to any home or office. Contemporary design elements are highlighted by a long, mesmerizing ribbon flame rising through attractive modern media. Explore unique placements and create a custom look with a choice of finishing options; include the optional Passive Heat kit to enable a TV just 12″ above the Rave fireplace without a mantel.

With unsurpassed dependability and exceptional value, the Rave gas series is another way Heatilator has been keeping America warm since 1927.

• Modern style in a popular linear design
• Select from the IntelliFire® app, touchscreen remote or wireless wall switch for the solution that fits your life
• Available in 32”, 36″ or 42” models to fit a variety of spaces, including corners
• Moderate heat output – up to 26,000 BTUs
• Customize the interior with fade-resistant reflective black glass panels, glass media, ceramic fiber stones and LED lighting
• Add a Passive Heat kit and mount your TV 12” above your fireplace with no mantel required
• Enjoy your fireplace any season by using heat distribution kits to direct heat where you want it, inside or outside your home
• Efficient fireplaces meeting qualifying rebates if available in your area

Product Brochures

Rave Series

Installation Manuals

Rave Series IFT Rev B
Rave Series IFT Rev B Canadian French

Owner’s Manuals

Rave Series IFT Rev B
Rave Series IFT Rev B Canadian French

Service Parts

Rave 32 w/IFT Rev B
Rave 42 w/IFT Rev B
Rave 36 w/IFT Rev B

Architect Guides

Rave RAVE32-IFT-B
Rave RAVE42-IFT-B
Rave RAVE36-IFT-B

Cad Drawings

Rave 42 (RAVE4013-IFT)
Rave Series

Specification Guide

Rave 32 32″ Gas Fireplace – DV

Size:	32″
Unit Width:	36″
Unit Height:	38-1/16″
Unit Depth:	17-3/4″
Unit Rear Width:	25-3/4″
Framing Height:	36-1/2″
Framing Depth:	17-3/4″
Fuel Type:	Natural Gas
BTU/hr Input:	19,000
Viewing Area:	27-1/4 x 15-3/4″
Ignition System:	IntelliFire Touch

Rave 42 42″ Gas Fireplace – DV

Size:	42″
Unit Width:	48″
Unit Height:	33-11/16″
Unit Depth:	17-3/4″
Unit Rear Width:	37-3/4″
Framing Depth:	17-3/4″
Fuel Type:	Natural Gas
BTU/hr Input:	25,250
Viewing Area:	39 x 15-1/4″
Ignition System:	IntelliFire Touch

Rave 36 36″ Gas Fireplace – DV

Size:	36″
Unit Width:	41″
Unit Height:	33-11/16″
Unit Depth:	17-3/4″
Unit Rear Width:	30-3/4″
Framing Depth:	17-3/4″
Fuel Type:	Natural Gas
BTU/hr Input:	20,500
Viewing Area:	32-1/4″ x 15-1/4″
Ignition System:	IntelliFire Touch

Efficiency Chart

Rave 32 32″ Gas Fireplace – DV

Steady State:	53.1%
AFUE:	51.4%
Canada EnerGuide:	51.1%

Rave 42 42″ Gas Fireplace – DV

Steady State:	66.4%
AFUE:	64.3%
Canada EnerGuide:	63.8%

Rave 36 36″ Gas Fireplace – DV

Steady State:	63.1%
AFUE:	61.10%
Canada EnerGuide:	63%
