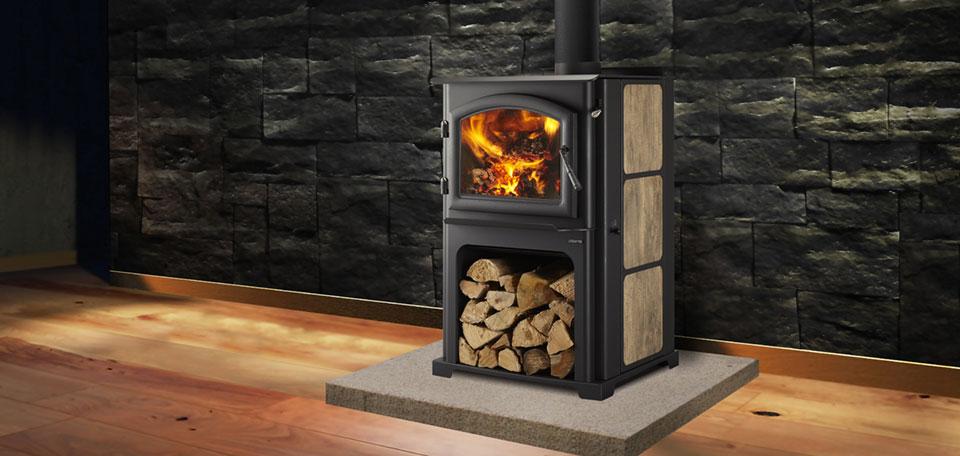

Quadra-Fire Discovery Series Wood Stove
DISCOVER THE POSSIBILITIES
The ideal size to heat most spaces, the Discovery delivers the powerful heat and efficiency you expect from Quadra-Fire. Building on its strong legacy, the Discovery delivers on:
PERFORMANCE
- Get maximum heat and a clean burn with the Quadra-Fire Four-Point Burn System, delivering performance that you can see
CONVENIENT
- Space saving wood storage bin, holds a days worth of wood
- Personalize your stove by choosing the included tile side or the solid side panel
- Tile side uses any 12 x 12 ceramic tiles
- Solid side can be left black or painted using high temperature paint
EASY OPERATION
- Eliminate the hassle and save time with Automatic Combustion Control (ACC): simply load the wood, light the fire and walk away
Product Brochures
Installation Manuals
Discovery I
Discovery I (Canadian French)
Discovery III
Discovery III (Canadian French)
Discovery II
Discovery II (Canadian French)
Owner’s Manuals
Discovery I
Discovery I (Canadian French)
Discovery III
Discovery III (Canadian French)
Discovery II
Discovery II (Canadian French)
Service Parts
Discovery I
Discovery III
Discovery II
Architect Guides
Cad Drawings
Specification Guide
Discovery I Wood Stove – C EPA 2020
| Fuel Type: | Seasoned Cord Wood |
| Peak BTU/hr Output: | 44,400 |
| Heating Capacity: | 800 – 2,100 sq ft |
| Maximum Burn Time: | 7 hrs |
| Firebox Capacity: | 1.5 cu ft |
| Recommended Log Length: | 16″ |
| Viewing Area: | 125 sq in |
| Efficiency: | LHV 82%, HHV 76% |
| Emissions: | 1.7 grams/hour |
Discovery III Wood Stove – C EPA 2020
| Fuel Type: | Seasoned Cord Wood |
| Peak BTU/hr Output: | 61,700 |
| Heating Capacity: | 1,100 – 3,000 sq ft |
| Maximum Burn Time: | 12 hrs |
| Firebox Capacity: | 2.3 cu ft |
| Recommended Log Length: | 18″ |
| Viewing Area: | 165 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.6 grams/hour |
Discovery II Wood Stove Rev C
| Fuel Type: | Seasoned Cord Wood |
| Peak BTU/hr Output: | 51,000 |
| Heating Capacity: | 1,000 – 2,600 sq ft |
| Maximum Burn Time: | 10 hrs |
| Firebox Capacity: | 2.0 cu ft |
| Recommended Log Length: | 16″ |
| Viewing Area: | 165 sq in |
| Efficiency: | LHV 78%, HHV 73% |
| Emissions: | 1.9 grams/hour |
Efficiency Chart
