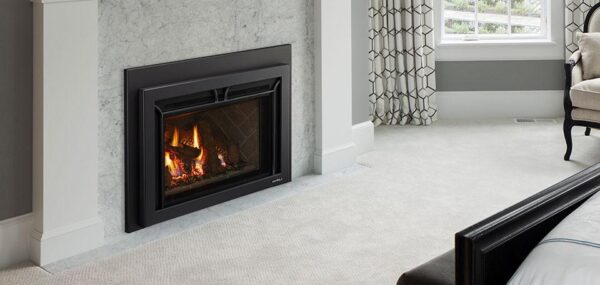

Heat & Glo Supreme Series Gas Fireplace Insert
Transform your cold, old fireplace into the focal point for your home it was meant to be – one you can center everyday living around. With alluring ambiance, cozy warmth and pushbutton control, the Supreme’s advantages go on and on.
- 25”, 30” and 35” viewing areas
- Up to 35,000 BTUs
- IntelliFire Touch ignition system with advanced remote control
- Ceramic glass with basic screen
- Three front designs
- Three surround sizes
- Fan
Product Brochures
Mantels Shelves and Surrounds
Design Guide
Gas Insert
Gas Insert (spreads)
Installation Manuals
Supreme IFT
Supreme IFT Canadian French
SupremeX-I30
Owner’s Manuals
Supreme IFT
Supreme IFT Canadian French
SupremeX-I30
Service Parts
Supreme 25 w/IFT (SUPREME-I25-IFT)
Supreme 35 w/IFT (SUPREME-I35-IFT)
Supreme 30 w/IFT (SUPREME-I30-IFT)
SupremeX-I30
Architect Guides
Cad Drawings
Specification Guide
Supreme Insert 25
| Size: |
25″ |
| Unit Width: |
26-1/8″ |
| Unit Height: |
17-1/16″ |
| Unit Depth: |
14-1/2″ |
| Unit Rear Width: |
14-5/8″ |
| Firebox Minimum Front Width Firebox Opening: |
26-5/8″ |
| Firebox Minimum Height Minimum Opening: |
17-5/16″ |
| Firebox Minimum Depth Firebox Opening: |
15″ |
| Firebox Minimum Back Width Opening: |
15-1/8″ |
| Firebox Minimum Front Width Opening: |
26-5/8″ |
| BTU/hr Input: |
27,000 |
| Viewing Area: |
22-1/2″ x 12-7/16″ |
| Ignition System: |
IntelliFire Touch |
Supreme Insert 35
| Size: |
35″ |
| Unit Width: |
36-1/8″ |
| Unit Height: |
24″ |
| Unit Depth: |
14-1/2″ |
| Unit Rear Width: |
24-5/8″ |
| Firebox Minimum Front Width Firebox Opening: |
36-5/8″ |
| Firebox Minimum Height Minimum Opening: |
24-1/4″ |
| Firebox Minimum Depth Firebox Opening: |
15″ |
| Firebox Minimum Back Width Opening: |
25-1/8″ |
| Firebox Minimum Front Width Opening: |
36-5/8″ |
| BTU/hr Input: |
35,000 |
| Viewing Area: |
32-1/2″ x 19-3/8″ |
| Ignition System: |
IntelliFire Touch |
Supreme Insert 30
| Size: |
30″ |
| Unit Width: |
31-1/8″ |
| Unit Height: |
20-3/4″ |
| Unit Depth: |
14-1/2″ |
| Unit Rear Width: |
19-5/8″ |
| Firebox Minimum Front Width Firebox Opening: |
31-5/8″ |
| Firebox Minimum Height Minimum Opening: |
21″ |
| Firebox Minimum Depth Firebox Opening: |
15″ |
| Firebox Minimum Back Width Opening: |
20-1/8″ |
| Firebox Minimum Front Width Opening: |
31-5/8″ |
| BTU/hr Input: |
32,700 |
| Viewing Area: |
27-1/2″ x 15-15/16″ |
| Ignition System: |
IntelliFire Touch |
SupremeX I30
| Size: |
30″ |
| Unit Width: |
31-1/8″ |
| Unit Height: |
20-3/4″ |
| Unit Depth: |
14-1/2″ |
| Unit Rear Width: |
19-5/8″ |
| Firebox Minimum Front Width Firebox Opening: |
31-5/8″ |
| Firebox Minimum Height Minimum Opening: |
21″ |
| Firebox Minimum Depth Firebox Opening: |
15″ |
| Firebox Minimum Back Width Opening: |
20-1/8″ |
| Firebox Minimum Front Width Opening: |
31-5/8″ |
| BTU/hr Input: |
27,000 |
| Viewing Area: |
27-1/2″ x 15-15/16″ |
| Ignition System: |
IntelliFire Touch |
Efficiency Chart
Supreme Insert 25
Supreme Insert 35
Supreme Insert 30
SupremeX I30
