Additional information
| Manufacturer | Quadra-Fire |
|---|---|
| Location |

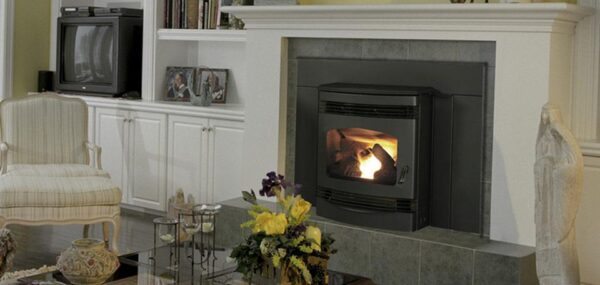

Quadra-Fire Santa Fe Pellet Insert
The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert.
- 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of 1.1 grams per hour
- 45lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
Product Brochures
Mantels Shelves and Surrounds
Pellet Inserts
Installation Manuals
Santa Fe Insert
Santa Fe Insert (Canadian French)
Owner’s Manuals
Santa Fe Insert
Santa Fe Insert (Canadian French)
Service Parts
Architect Guides
Cad Drawings
Specification Guide
Sante Fe Insert
| Unit Width: | 21-1/2″ |
| Unit Height: | 25-3/8″ |
| Firebox Minimum Front Width Firebox Opening: | 29-1/8″ |
| Firebox Minimum Height Minimum Opening: | 23-1/4″ |
| Firebox Minimum Depth Firebox Opening: | 13″ |
| Firebox Minimum Back Width Opening: | 23-7/8″ |
| Firebox Minimum Front Width Opening: | 29-1/8″ |
| Extension Onto Hearth: | 8-5/8″ |
| Fuel Type: | Pellet |
| BTU/hr Input: | 9,400 – 30,600 |
| Heating Capacity: | 700 – 1,900 sq ft |
| Hopper Size: | 45 lbs |
| Viewing Area: | 201 sq in |
| Efficiency: | LHV 70%, HHV 66% |
| Emissions: | 1.1 grams/hour |
Efficiency Chart
