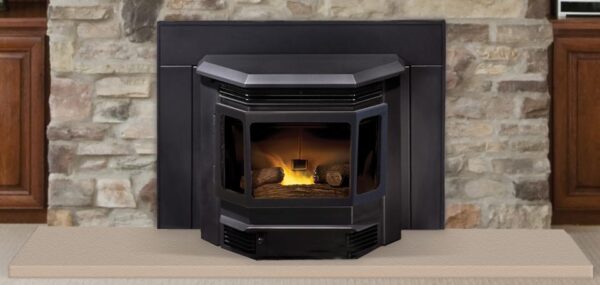

Quadra-Fire Classic Bay 1200 Pellet Insert

The Classic Bay 1200i delivers stunning flames and impressive performance—always on display through its large bay window. Superior technology helps the 1200i produce powerful warmth, while remaining highly efficient.

  • 48,500 BTUs — heats 1,000 to 2,600 square feet, based on climate and home efficiency
  • EPA certified, with low emission levels of .8 grams per hour
  • 75lb hopper capacity
  • Patented feed system for jam-free operation
  • Easy-clean firepot

Product Brochures

Mantels Shelves and Surrounds
Pellet Inserts

Installation Manuals

Classic Bay Insert
Classic Bay Insert (Canadian French)

Owner’s Manuals

Classic Bay Insert
Classic Bay Insert (Canadian French)

Service Parts

Classic Bay
Classic Bay Insert

Architect Guides

Cad Drawings

Specification Guide

CB1200I-C Insert

Unit Width: 28-1/2″
Unit Height: 25-1/2″
Firebox Minimum Front Width Firebox Opening: 29-3/4″
Firebox Minimum Height Minimum Opening: 19-3/4″
Firebox Minimum Depth Firebox Opening: 13-1/4″
Firebox Minimum Back Width Opening: 22-1/2″
Firebox Minimum Front Width Opening: 29-3/4″
Extension Onto Hearth: 13-5/8″
BTU/hr Input: 17,000 – 48,500
Heating Capacity: 1,000 – 2,700 sq ft
Hopper Size: 75 lbs
Viewing Area: 153 sq in
Efficiency: LHV 68%, HHV 64%
Emissions: .8 grams/hour

Efficiency Chart
