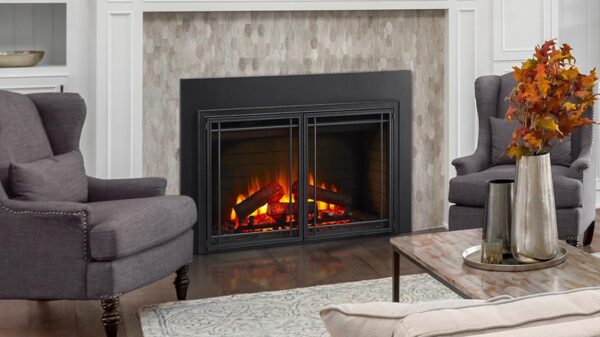

SimpliFire Electric Insert

It’s never been more affordable to transform your drafty, dated fireplace into an efficient and attractive heat source. You can also add a new, captivating fireplace in any room to enjoy year-round with or without heat.

  • Install into a wood fireplace opening with a surround kit or any framed opening with the self-trimming design
  • Operate at just pennies an hour with adjustable heat
  • Enjoy year-round with or without heat?
  • Low maintenance and energy efficient thanks to LED technology?
  • Easy control with the intuitive, multifunction remote
  • Zone-heat your space with warmth where you want it while cutting monthly energy bills?

Product Brochures

Electric Insert Brochure
Electric Insert Brochure – French

Installation Manuals

Owner’s Manuals

English Manual
French Canadian Manual
English Service Manual

Service Parts

25″ Model Service Parts List
30″ Model Service Parts List
35″ Model Service Parts List

Architect Guides

25″ Model Architect Guide
30″ Model Architect Guide
35″ Model Architect Guide

Cad Drawings

25″ Model CAD Drawing
30″ Model CAD Drawing
35″ Model CAD Drawing

Specification Guide

Electric Insert 25″

Size: 25″
Width: 24-7/8″
Height: 16-1/4″
Depth: 11-1/4″
Rear Width: 17-7/8″
Framing Width: 25-3/8″
Framing Height: 16-3/8″
Framing Depth: 11-3/8″
Front Width Minimum Firebox Opening: 25″
Height Minimum Firebox Opening: 16-3/8″
Depth Minimum Firebox Opening: 11-3/8″
Back Width Minimum Firebox Opening: 18″
Fuel Type: Electric
BTU/hr Input: 5,000
Viewing Area: 22″ x 12″

Electric Insert 30″

Size: 30″
Width: 29-7/8″
Height: 20-1/2″
Depth: 11-1/4″
Rear Width: 22-7/8″
Framing Width: 30-3/8″
Framing Height: 20-5/8″
Framing Depth: 11-3/8″
Front Width Minimum Firebox Opening: 30″
Height Minimum Firebox Opening: 20-5/8″
Depth Minimum Firebox Opening: 11-3/8″
Back Width Minimum Firebox Opening: 23″
Fuel Type: Electric
BTU/hr Input: 5,000
Viewing Area: 27″ x 16-1/4″

Electric Insert 35″

Size: 35″
Width: 35″
Height: 23-1/4″
Depth: 11-1/4″
Rear Width: 28″
Framing Width: 35-1/2″
Framing Height: 23-1/2″
Framing Depth: 11-3/8″
Front Width Minimum Firebox Opening: 35-1/8″
Height Minimum Firebox Opening: 23-3/8″
Depth Minimum Firebox Opening: 11-3/8″
Back Width Minimum Firebox Opening: 28-1/8″
Fuel Type: Electric
BTU/hr Input: 5,000
Viewing Area: 32-1/8″ x 19″

Efficiency Chart
